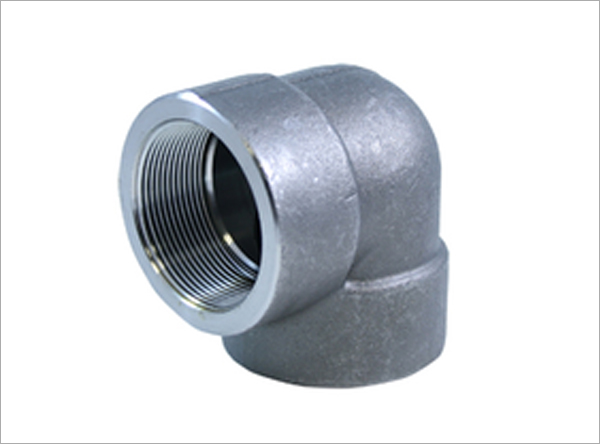

Kobs India is one of the largest exporter, manufacturer and supplier of Monel Forged Elbow in India. The Monel Forged Elbow we provide are being designed in accordance by means of the national and international industry rules by using high-grade of raw materials and precisely advanced machines. We offer these forged fittings to our customers as per their precise demands and requirements. Meanwhile, clients can select our range for its below registered salient features such as, Corrosion resistance finishing, Rugged construction, East installation, Seamless edges, and more.
We offer Monel Elbow that is available in different grades, forms and ranges meeting the needs and standards of various industries. Monel elbow is widely acclaimed for easy connection between the pipes. These also help in slowing down the flow disturbances, reducing the swirl and easily enhancing the highly balanced flow with less pressure loss. These are available at affordable prices. Our proficiency in this field has helped us in adding an extensive array of these fittings in our catalog. Our Forged Fittings are accessible to our valuable customers in different range of diameters, wall thicknesses and sizes at quite affordable rates.
Grade: Monel 400, Monel K500 (2.4375), Monel R-405
|K500 (2.4375)||63.0 min||05 - 2||0.25 max||1.5 max||0.5 max||27.0 - 33.0||2.3 - 3.15||0.35 - 0.85||0.010 max|
|400||63.0- 70.00 max||2.50 max||0.3 max||2.00 max||0.50 max||Remainder||-||-||0.024 max|
|Grade||Tensile (ksi)||.2% Yield (ksi)||Elongation %||Hardness (HRb)|
|400||75 to 90||25 to 50||60 to 35||60 to 80|
|K500 (2.4375)||Psi – 1,60,000 , MPa – 1100||Psi – 1,15,000 , MPa – 790||20 %||-|
Stainless Steel :
Grade: 304 (1.4301), 304L(1.4307), 304H (1.4948), 309 (1.4828), 309S, 310, 310S (1.4845), 316( 1.4401), 316H, 316L ( 1.4404 /1.4432) , 317, 317L (1.4438), 321 (1.4541), 321 H(1.4878), 347 (1.4550), 347H (1.4961), 904L (1.4539)
Grade: 2205 (1.4507)
Super Duplex Steel:
Grade: 2507 (UNS S32750)
Grade: Inconel 600 (2.4640), Inconel 601 (2.4851), Inconel 625 (2.4856), Inconel 718(2.4668)
Grade: Incoloy 800(2.4958), Incoloy 800H, Incoloy 800HT
Grade: Nickel 200, Nickel 201
Grade: Gr.1 (3.7025) , Gr.2 (3.7035) , Gr.3(3.7055) , Gr.5(3.7164/65), Gr. 7(3.7235) , Gr. 11 (3.7225)
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
The principal methods of hot working are extrusion, drawing, forging and rolling. Rolling is the most extensive employed forming process, though some limitations may apply to the process. Rolling mainly consists of three major sub-categories: flat rolling, shape rolling (with specifically designed roll grooves) and pipe rolling (including piercing). Forging may be sub-categorized as hamming, pressing, etc. .
Forging may be performed under hammers, in mechanical presses and upsetters or by a method known as roll forging. Pressing generally includes the manufacture of forged articles in hydraulic presses. Extrusion usually is performed in hydraulic presses which force the hot steel through a die. Rolling is performed in rolling mills of a variety of types. .
The two principal reasons for perform metal forming at elevated temperatures (hot working) are to reduce the forming loads through the reduction of the resistance of the steel to deformation, and to develop preferred metallurgical structures for strength and ductility of the finish products.
The most appropriate manufacturing method of a product will be decided with consideration of its material, sizes, shape, use, standards and other properties.
