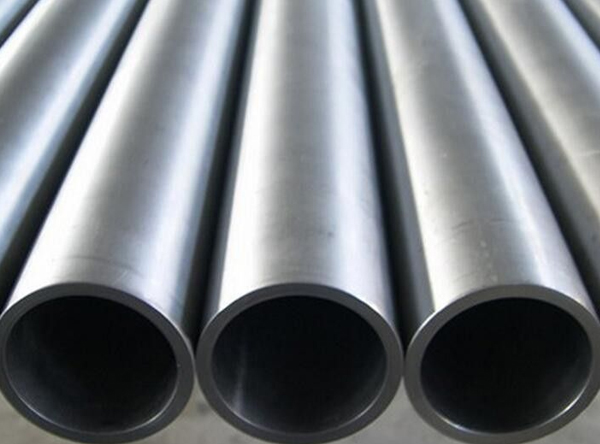

We are engaged in offering Incoloy 800/ 800h/ 800ht Tubes , ASTM B358 Incoloy 800 Seamless Tubes that are manufactured using superior quality components to withstand high temperatures. We also offer these seamless tubes in different specifications. These pipes are widely used in various applications industry like oil and gas, petrochemical, medicine, food, paper, machinery, natural gas etc. We can meet most ASME, ASTM, and other specifications, and can cross-reference to most international standards. We offer Incoloy Tubes in standards specifications at the most competitive prices.

For the purpose of maintaining the best possible quality, we have set up a well-equipped in-house quality testing unit. As a manufacturer, supplier, stockiest and exporter, we offer these Inconel Alloy 800 tubes in custom-made sizes and thicknesses, as per the exact demands of our esteemed clients. We offer these UNS N08800 Tubes in international and national quality of standards at cost-effective rates to our patrons.

Material & Grade :

Incoloy :
Grade: Incoloy 800, Incoloy 800h, Incoloy 800ht Tubes

Standards Specification:

  • Range : ½”Inch and 16”Inch
  • Schedules : SCH. 5, 10, 20, 30, 40, 60, 80, 100, 120, 140, 160, XXS.
  • Length : Single Random, Double Random & Cut Length
  • Specifications : ASTM A312 / ASTM SA312
  • Types : Round, Square, Rectangle, Hydraulic, Honed Tubes
  • End : Plain End, Beveled End

Chemical Composition

Incoloy 800 800H 800HT
Ni 30-35 30-35 30-35
Fe 39.5 min 39.5 min 39.5 min
Cr 19-23 19-23 19-23
Cu 0.75 max 0.75 max 0.75 max
Ti 0.15-0.60 0.15-0.60 0.25-0.60
Al 0.15-0.60 0.15-0.60 0.85-1.20
C 0.1 max 0.05-0.1 0.06-0.1
Mn 1.5 max 1.5 max 1.5 max
S 0.015 max 0.015 max 0.015 max
Si 1.0 max 1.0 max 1.0 max

Mechanical Properties

Density 7.94 g/cm3
Melting Point 1385 °C (2525 °F)
Tensile Strength Psi – 75,000 , MPa – 520
Yield Strength (0.2%Offset) Psi – 30,000 , MPa –205
Elongation 30 %

Product Features:

  • Durability
  • High strength
  • Effective functionality
  • Sturdy construction
  • Corrosion resistance
  • Dimensional accuracy

Manufacturing Process :

The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.

Product Usage & Application :

  • Useful in Paper & Pulp Companies
  • Useful in High Pressure Applications
  • Useful in Oil and Gas Industry
  • Useful in Chemical Refinery
  • Useful in Pipeline
  • Useful in High Temperature Application
  • Useful in Water Pipe Line
  • Useful in Nuclear Power Plants
  • Useful in Food Processing and Dairy Industries
  • Useful in Boiler & Heat Exchangers

Other grades also available :

Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 310, 310S, 316, 316H, 316L , 317, 317L, 321, 321H, 347, 347H, 904L
Duplex Steel:
Grade: 2205
Super Duplex Steel:
Grade: 2507 (UNS S32750)
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Nickel :
Grade: Nickel 200, Nickel 201
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Monel :
Grade: Monel 400, Monel K500, Monel R-405
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X

Packing :

  • Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
  • We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
    • Shrink-wrapped
    • Carton boxes
    • Wooden pallets
    • Wooden boxes
    • Wooden crates

Why Choose Us :

  • You can get the perfect material according to your requirement at the least possible price.
  • We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
  • The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
  • e guarantee to give a response within 24hours(usually in the same hour)
  • You can get stock alternatives, mill deliveries with minimizing manufacturing time.
  • We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

Tests we carry out (including both Destructive and Non-Destructive) :

  • Positive material recognition
  • Mechanical examining like tensile, Elongation and reduction of area.
  • Large-scale test
  • Chemical examination-Spectro analysis
  • Firmness test
  • Pitting protection test
  • Small tests
  • X-ray test
  • Impact analysis
  • Eddy current examining
  • Hydrostatic analysis
  • Prompt test
