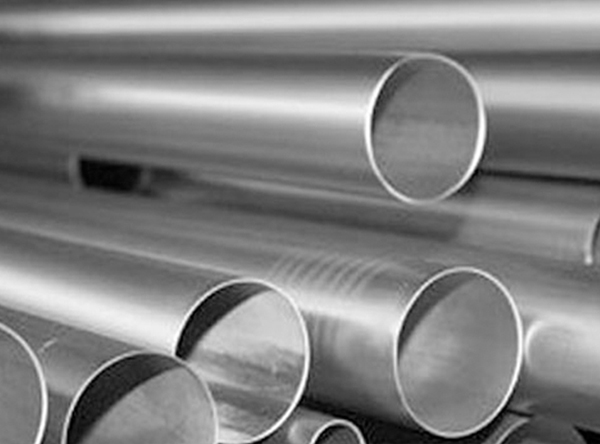

We also hold expertise in manufacturing and supplying a quality approved range of Hastelloy Pipes, which is made available in different dimensions and specifications as detailed by the client. Made as per international industrial standards and using high grade raw material, the range comprises products such as Alloy C 276 Pipes, UNS N10276 Pipe, Hastelloy Welded Pipe and Hastelloy EFW Pipe. Stringently checked and tested, the range is offered at industry leading prices. Hastelloy Piping is very often specified for highly-corrosive industrial applications and frequently used in processes in which chlorides are a component.

Backed by a team of experienced professionals we offer a complete range of Alloy C 276 Pipes to our esteemed patrons. These are highly proficient in meeting varied requirements of the clients from different industries and sectors. High grade raw material and machinery are employed in the manufacturing of these pipes at our end. Moreover, our quality checkers analyze the entire range as per the clients’ needs and demands.

Material & Grade :

Hastalloy :
Grade: ALLOY B-2(2.4617), Alloy C-22 (2.4602), Alloy C-276 (2.4819)

Standards Specification:

Standard ASTM & ASME
Size ½”Inch and 24”Inch
Schedule SCH 10 – SCH XXS
Type Seamless / EFW / Welded / Fabricated / LSAW Pipes
Form Round, Square, Rectangular, Hydraulic Etc.
End Plain End, Bevelled End, Threaded
Length Single Random, Double Random & Cut Length

Chemical Composition

Alloy* C% Co% Cr% Mo% V% W% Ai% Cu% Nb % Ti% Fe% Ni% Other%
Hastelloy B 0.1 1.25 0.6 28 0.3 - - - - - 5.5 rest/bal Mn 0.80; Si 0.70
Hastelloy B2 0.02 1 1 26.0-30.0 - - - - - - 2 rest/bal Mn 1.0, Si 0.10
Hastelloy X 0.1 1.5 22 9 - 0.6 - - - 18.5 - rest/bal Mn 0.6; Si 0.60

Chemical Composition Hastelloy C22

Element Min Max
Molybdenum 12.5 14.5
Chromium 20.0 22.5
Iron 2.00 6.00
Tungsten 2.50 3.50
Cobalt -- 2.50
Carbon -- 0.010
Silicon -- 0.08
Manganese -- 0.50
Vanadium -- 0.35
Phosphorus -- 0.025
Sulfur -- 0.010

Chemical Composition Hastelloy C276

Element Min Max
Molybdenum 15.0 17.0
Chromium 14.5 16.5
Iron 4.0 7.0
Tungsten 3.0 4.5
Cobalt -- 2.50
Manganese -- 2.5
Carbon -- 1.0
Vanadium -- .01
Phosphorus -- 35 max
Sulfur -- .04 max
Silicon -- .03 max
Sulfur -- .08 max

Mechanical Properties

Grade Tensile (ksi) .2% Yield (ksi) Elongation % Hardness (HRb)
C22 115 55 60 89
C276 110 52.6 62 -

Product Features:

  • EFW Pipes manufacturing using Hot Extrusion facility up to 2"NB
  • Draw bench facility up to 8" NB
  • Solution Annealing Heat Treatment facility up to 8" NB
  • Various grades offered : Austenitic , Super Austenitic ,Duplex ,Super Duplex Stainless Steels
  • Stabilization Heat Treatment Facility for Stabilized Grades

Manufacturing Process :

The process commences with the formation of welded mother tube on the tube mill from imported and tested prime quality stainless steel strips. The latest TIG multi electrode welding technique is employed for superior weld quality and 100% Fusion, with argon purging, No filler metal added.

Product Usage & Application :

  • Useful in Paper & Pulp Companies
  • Useful in High Pressure Applications
  • Useful in Oil and Gas Industry
  • Useful in Chemical Refinery
  • Useful in Pipeline
  • Useful in High Temperature Application
  • Useful in Water Pipe Line
  • Useful in Nuclear Power Plants
  • Useful in Food Processing and Dairy Industries
  • Useful in Boiler & Heat Exchangers

Other grades also available :

Stainless Steel :
Grade: 304, 304L, 304H, 309, 309S, 310, 310S, 316, 316H, 316L , 317, 317L, 321, 321H, 347, 347H, 904L
Duplex Steel:
Grade: 2205
Super Duplex Steel:
Grade: 2507 (UNS S32750)
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Incoloy 800H, Incoloy 800HT
Nickel :
Grade: Nickel 200, Nickel 201
Monel :
Grade: Monel 400, Monel K500, Monel R-405
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11

Packing :

  • Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging.
  • We pack our goods in numerous ways based on the products. We pack our products in multiple ways, such as,
    • Shrink-wrapped
    • Carton boxes
    • Wooden pallets
    • Wooden boxes
    • Wooden crates

Why Choose Us :

  • You can get the perfect material according to your requirement at the least possible price.
  • We also offer Reworks, FOB, CFR, CIF, and door to door delivery prices. We suggest you to do deal for shipping which will be quite economical.
  • The materials we provide are completely verifiable, right from raw material test certificate to the final dimensional statement.(Reports will show on requirement)
  • e guarantee to give a response within 24hours(usually in the same hour)
  • You can get stock alternatives, mill deliveries with minimizing manufacturing time.
  • We are fully dedicated to our customers. If it will not possible to meet your requirements after examining all options, we will not mislead you by making false promises which will create good customer relations.

Tests we carry out (including both Destructive and Non-Destructive) :

  • Positive material recognition
  • Mechanical examining like tensile, Elongation and reduction of area.
  • Large-scale test
  • Chemical examination-Spectro analysis
  • Firmness test
  • Pitting protection test
  • Small tests
  • X-ray test
  • Impact analysis
  • Eddy current examining
  • Hydrostatic analysis
  • Prompt test
